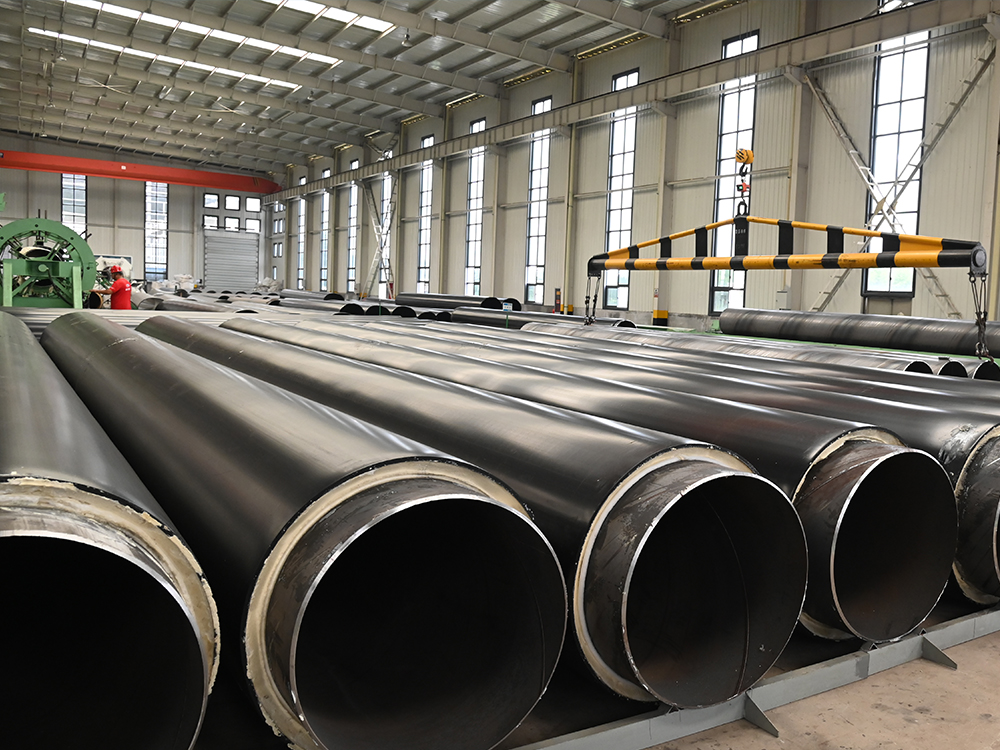

Chemical insulation pipeline

Shengbao people uphold the original intention, drive development through innovation, and take integrity as the rudder. Let's set sail side by side and paint a high-quality future together!

Shandong Shengbao Pipeline Technology Co., Ltd.

West End of Jinshan Street, Xin'an Street, Anqiu, Shandong

Get a quote Hotline:+86 152-0698-3125

60 second response time

30 minute response

24-hour plan

Introduction

Our company currently has one advanced continuous and intermittent spray winding production line in China, producing insulation pipes with diameters ranging from 529 to 1620. The spraying system uses a Graco high-pressure spray foaming machine, and the winding system uses a Jinhu extruder. The product quality fully meets or exceeds the national standard GB/T34611-2017.

Product structure diagram

Spray wrapping production process

Advantage

01The spray wrapping process can reasonably determine the thickness of the insulation layer and outer protective layer based on the temperature of the conveying medium, reducing unnecessary material waste.
02The spray wrapping production line has a compact structure, fewer links, and reduces production costs.
03The uniform spraying density ensures excellent insulation effect of the insulation pipe.
04喷涂生产方式有效的保证了工作钢管与外护层的同心度，大大提升了产品品质

Images

Customized solutions, customized products
Precision Manufacturing
Excellent material selection

Years of experience
Stable and durable
price concessions

Parameter

Technical indicators of outer protective layer

Name	Indicator requirements
density	940-960kg/m³
thermal conductivity	≤0.43[W/(mk)]
Carbon black content	2.5%±0.5%
tensile yield strength	≥19MPa
elongation at break	≥450%
environmental stress crack resistance	≥300h
Long term mechanical performance	≥2000h

Technical indicators of insulation layer

Name	Indicator requirements
density	≥260kg/m³
radial crushing strength	≥0.3MPa
close cell content	≥90%
Water absorption rate	≤10%
	≤0.033[W/(m ·k)]
Long term temperature resistance(Continuous operation for 30 years)	120℃

Thickness of insulation and outer protective layer

Steel pipe nominal diameter DN(mm)	insulation thickness(mm)	Outer diameter of protective tube D(mm)	Minimum wall thickness of outer protective layer(mm)
300	30~50	393~433	4.0
350	30~50	445~485	4.0
400	30~60	494~544	4.0
450	30~60	547~607	4.5
500	30~60	598~658	4.5
600	30~60	700~760	5.0
700	30~60	790~852	5.0
800	30~60	891~951	5.5
900	30~60	992~1052	6.0
1000	30~60	1093~1153	6.5
1100	30~60	1194~1254	7.0
1200	40~100	1316~1436	8.0
1400	50~120	1538~1678	9.0

Test equipment

Engineering

Anqiu New Heat Source Supporting Pipe Network Project
Linqu County Eastern Heat Source Center Project

Application

: water conservancy project

water conservancy project

The application in water conservancy engineering has significant advantages, and its lightweight, high strength, corrosion resistance and other characteristics make it an indispensable and important material in water conservancy engineering.

: municipal engineering

municipal engineering

Thanks to its lightweight, high strength, corrosion resistance, easy installation, and long lifespan. The ideal choice for urban water supply, drainage, sewage treatment and other systems has significantly improved the construction efficiency and economic benefits of municipal infrastructure.

: Agricultural irrigation

Agricultural irrigation

Due to its lightweight, corrosion-resistant, and easy installation characteristics, it has been widely used in agricultural irrigation systems, effectively improving irrigation efficiency and reducing maintenance costs

: Environmental governance

Environmental governance

Widely and significantly used in environmental governance, its excellent corrosion resistance, lightweight and high strength, and convenient installation make it a key material for handling corrosive media, improving governance efficiency, and reducing maintenance costs
